Plot different resolutions to be used in part_sblock

Source: R/plot_res.R
plot_res.Rd

This function is useful to display the maximum and minimum resolution that you want to test with the block_partition function. Note that if the resolution to be tested is very fine, the plot display may take a long time.

Usage

plot_res(r, res_mult)

Arguments

r

SpatRaster. A raster layer, preferably a layer of environmental variables to be used

res_mult

numeric. Maximum or minimum resolution to be tested.

Value

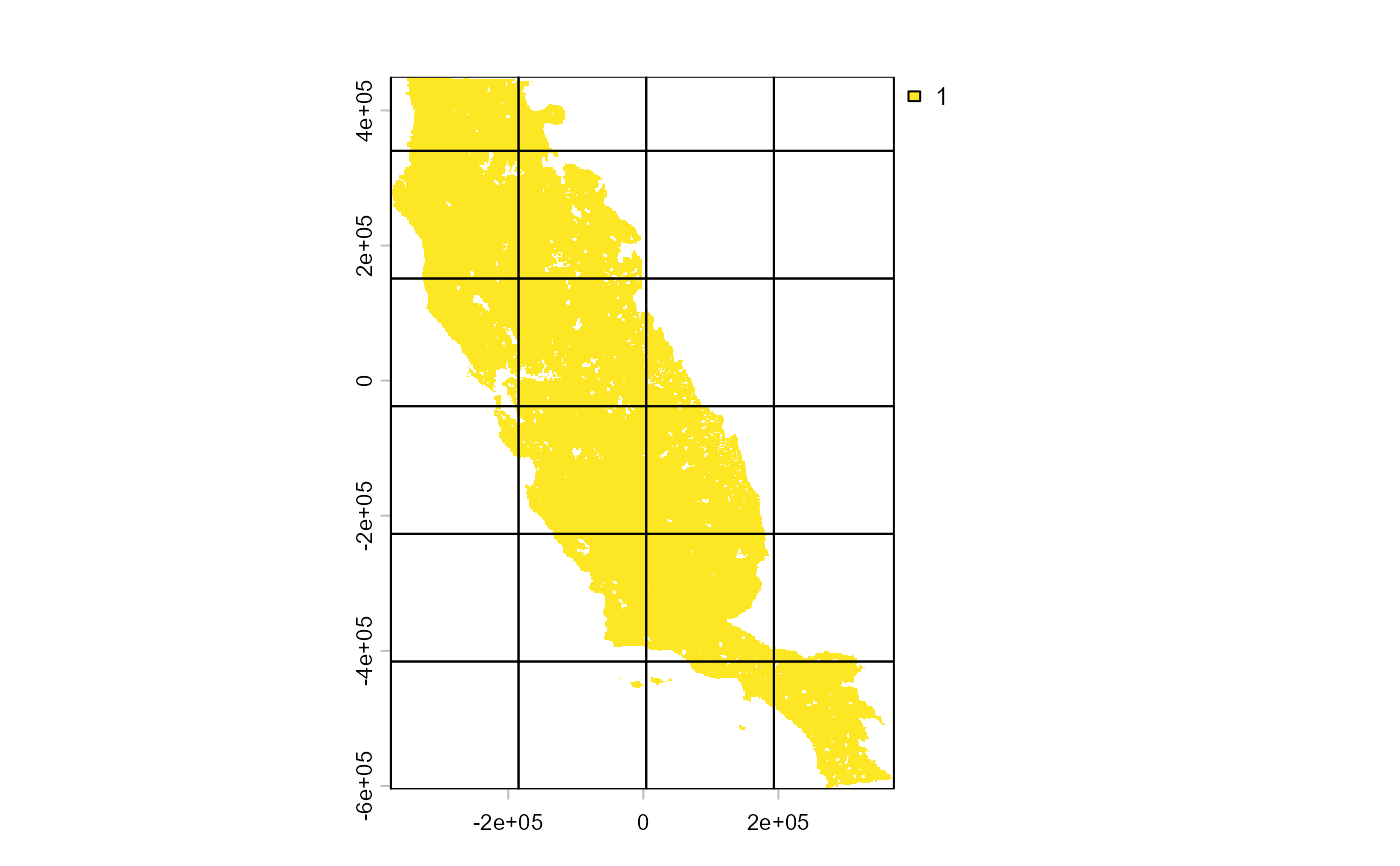

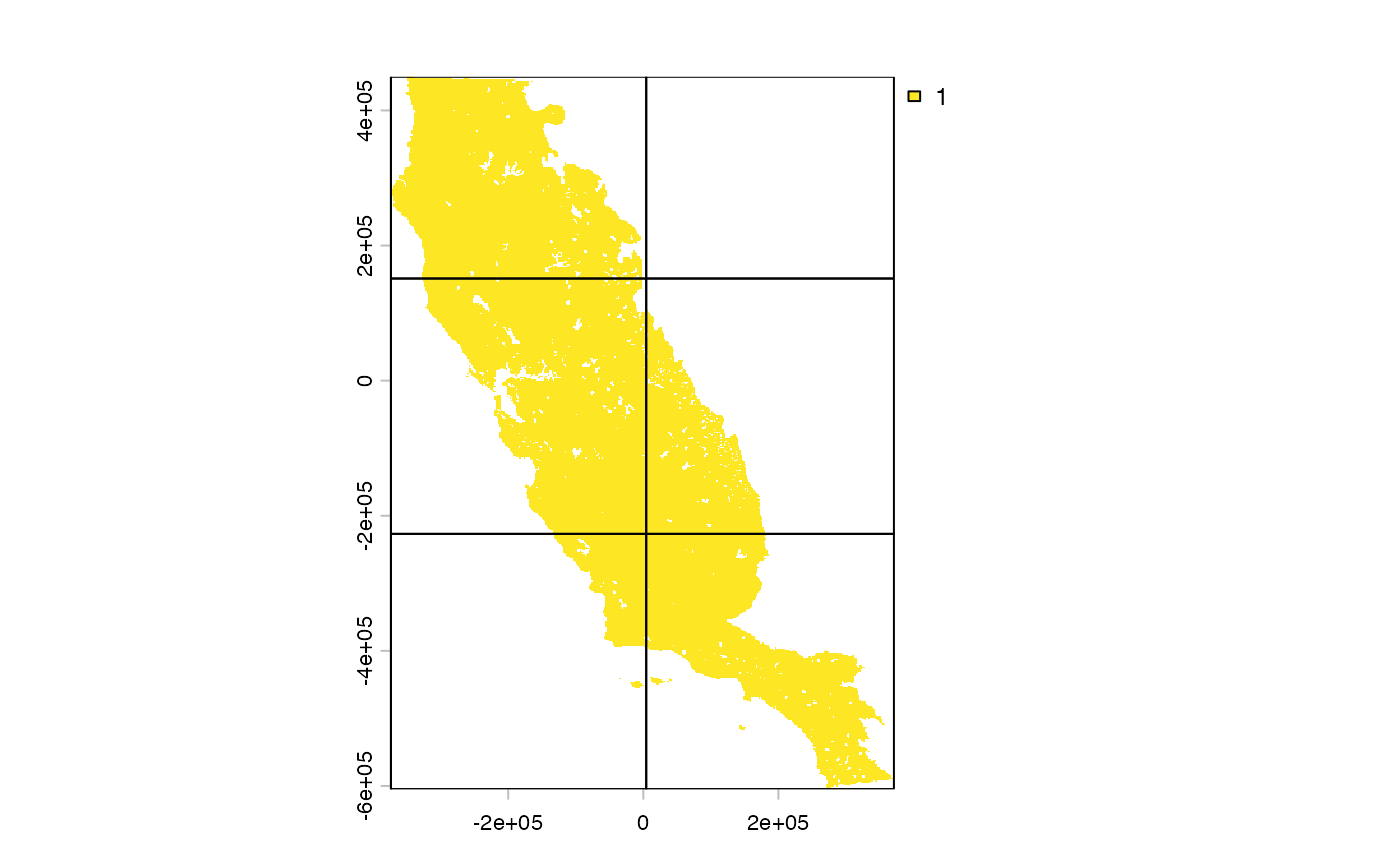

A plot with the original raster overlapped by a grid with the resolution used

Examples

if (FALSE) { # \dontrun{
f <- system.file("external/somevar.tif", package = "flexsdm")
r <- terra::rast(f)
r <- r$CFP_1
plot_res(r, res_mult = 100)
plot_res(r, res_mult = 200)
} # }
