Fit and validate Generalized Boosted Regression models with exploration of hyper-parameters that optimize performance

This function fits and validates Generalized Boosted Regression models (GBM) while exploring different hyper-parameter combinations to find the one that optimizes model performance. It is a tune version of [fit_gbm()].

Usage

tune_gbm(
  data,
  response,
  predictors,
  predictors_f = NULL,
  fit_formula = NULL,
  partition,
  grid = NULL,
  thr = NULL,
  metric = "TSS",
  n_cores = 1
)

Arguments

data

data.frame. Database with response (0,1) and predictors values.

response

character. Column name with species absence-presence data (0,1).

predictors

character. Vector with the column names of quantitative predictor variables (i.e. continuous variables). Usage predictors = c("aet", "cwd", "tmin")

predictors_f

character. Vector with the column names of qualitative predictor variables (i.e. ordinal or nominal variables type). Usage predictors_f = c("landform")

fit_formula

formula. A formula object with response and predictor variables (e.g. formula(pr_ab ~ aet + ppt_jja + pH + awc + depth + landform)). Note that the variables used here must be consistent with those used in response, predictors, and predictors_f arguments. Default is NULL.

partition

character. Column name with training and validation partition groups.

grid

data.frame. A data frame object with algorithm hyper-parameter values to be tested. It Is recommended to generate this data.frame with the grid() function. Hyper-parameters needed for tuning are 'n.trees', 'shrinkage', and 'n.minobsinnode'.

thr

character. Threshold used to get binary suitability values (i.e. 0,1) needed for threshold-dependent performance metrics. It is possible to use more than one threshold type. Provide a vector for this argument. The following threshold types are available:

lpt: The highest threshold at which there is no omission.
equal_sens_spec: Threshold at which the sensitivity and specificity are equal.
max_sens_spec: Threshold at which the sum of the sensitivity and specificity is the highest (aka threshold that maximizes the TSS).
max_jaccard: The threshold at which the Jaccard index is the highest.
max_sorensen: The threshold at which the Sorensen index is highest.
max_fpb: The threshold at which FPB (F-measure on presence-background data) is highest.
sensitivity: Threshold based on a specified sensitivity value. Usage thr = c('sensitivity', sens='0.6') or thr = c('sensitivity'). 'sens' refers to sensitivity value. If no sensitivity value is specified, the default used is 0.9

If more than one threshold type is used they must be concatenate, e.g., thr=c('lpt', 'max_sens_spec', 'max_jaccard'), or thr=c('lpt', 'max_sens_spec', 'sensitivity', sens='0.8'), or thr=c('lpt', 'max_sens_spec', 'sensitivity'). Function will use all threshold types if no threshold is specified.

metric

character. Performance metric used for selecting the best combination of hyper-parameter values. The following metrics can be used: SORENSEN, JACCARD, FPB, TSS, KAPPA, AUC, and BOYCE. TSS is used as the default.

n_cores

numeric. Number of cores use for parallelization. Default 1

Value

A list object with:

model: A "gbm" class object from gbm package. This object can be used for predicting.
predictors: A tibble with quantitative (c column names) and qualitative (f column names) variables use for modeling.
performance: Hyper-parameter values and performance metric (see sdm_eval) for the best hyper-parameter combination.
performance_part: Performance metric for each replica and partition (see sdm_eval).
hyper_performance: Performance metric (see sdm_eval) for each combination of the hyper-parameters.
data_ens: Predicted suitability for each test partition based on the best model. This database is used in fit_ensemble

Examples

# \donttest{
data(abies)
abies
#> # A tibble: 1,400 × 13
#>       id pr_ab        x        y   aet   cwd  tmin ppt_djf ppt_jja    pH    awc
#>    <int> <dbl>    <dbl>    <dbl> <dbl> <dbl> <dbl>   <dbl>   <dbl> <dbl>  <dbl>
#>  1   715     0  -95417.  314240.  323.  546.  1.24    62.7   17.8   5.77 0.108
#>  2  5680     0   98987. -159415.  448.  815.  9.43   130.     6.43  5.60 0.160
#>  3  7907     0  121474.  -99463.  182.  271. -4.95   151.    11.2   0    0
#>  4  1850     0  -39976.  -17456.  372.  946.  8.78   116.     2.70  6.41 0.0972
#>  5  1702     0  111372.  -91404.  209.  399. -4.03   165.     9.27  0    0
#>  6 10036     0 -255715.  392229.  308.  535.  4.66   166.    16.5   5.70 0.0777
#>  7 12384     0 -311765.  380213.  568.  352.  4.38   480.    41.2   5.80 0.110
#>  8  6513     0  111360. -120229.  327.  633.  4.93   163.     8.91  1.18 0.0116
#>  9  9884     0 -284326.  442136.  377.  446.  3.99   296.    16.8   5.96 0.0900
#> 10  8651     0  137640. -110538.  215.  265. -4.62   180.     9.57  0    0
#> # ℹ 1,390 more rows
#> # ℹ 2 more variables: depth <dbl>, landform <fct>

# Partition the data with the k-fold method

abies2 <- part_random(
  data = abies,
  pr_ab = "pr_ab",
  method = c(method = "kfold", folds = 3)
)

# pr_ab is the name of the column with species presence and absences (i.e. the response variable)
# from aet to landform are the predictors variables (landform is a qualitative variable)

# Hyper-parameter values for tuning
tune_grid <-
  expand.grid(
    n.trees = c(20, 50),
    shrinkage = c(0.1, 0.5),
    n.minobsinnode = c(3, 7)
  )

gbm_t <-
  tune_gbm(
    data = abies2,
    response = "pr_ab",
    predictors = c(
      "aet", "cwd", "tmin", "ppt_djf", "ppt_jja",
      "ppt_jja", "pH", "awc", "depth"
    ),
    predictors_f = c("landform"),
    partition = ".part",
    grid = tune_grid,
    thr = "max_sens_spec",
    metric = "TSS",
    n_cores = 1
  )
#> Formula used for model fitting:
#> pr_ab ~ aet + cwd + tmin + ppt_djf + ppt_jja + ppt_jja + pH + awc + depth + landform
#> Tuning model...
#> Replica number: 1/1
#> Fitting final model with best hyper-parameters...
#> Formula used for model fitting:
#> pr_ab ~ aet + cwd + tmin + ppt_djf + ppt_jja + ppt_jja + pH + awc + depth + landform
#> Replica number: 1/1
#> Partition number: 1/3
#> Partition number: 2/3
#> Partition number: 3/3

# Outputs
gbm_t$model
#> gbm::gbm(formula = formula1, distribution = "bernoulli", data = data,
#>     n.trees = n_trees, n.minobsinnode = n_minobsinnode, shrinkage = shrinkage)
#> A gradient boosted model with bernoulli loss function.
#> 50 iterations were performed.
#> There were 9 predictors of which 9 had non-zero influence.
gbm_t$predictors
#> # A tibble: 1 × 10
#>   c1    c2    c3    c4      c5      c6      c7    c8    c9    f
#>   <chr> <chr> <chr> <chr>   <chr>   <chr>   <chr> <chr> <chr> <chr>
#> 1 aet   cwd   tmin  ppt_djf ppt_jja ppt_jja pH    awc   depth landform
gbm_t$performance
#> # A tibble: 1 × 36
#>   n.trees shrinkage n.minobsinnode model threshold     thr_value n_presences
#>     <dbl>     <dbl>          <dbl> <chr> <chr>             <dbl>       <int>
#> 1      50       0.5              3 gbm   max_sens_spec     0.444         700
#> # ℹ 29 more variables: n_absences <int>, TPR_mean <dbl>, TPR_sd <dbl>,
#> #   TNR_mean <dbl>, TNR_sd <dbl>, W_TPR_TNR_mean <dbl>, W_TPR_TNR_sd <dbl>,
#> #   SORENSEN_mean <dbl>, SORENSEN_sd <dbl>, JACCARD_mean <dbl>,
#> #   JACCARD_sd <dbl>, FPB_mean <dbl>, FPB_sd <dbl>, OR_mean <dbl>, OR_sd <dbl>,
#> #   TSS_mean <dbl>, TSS_sd <dbl>, KAPPA_mean <dbl>, KAPPA_sd <dbl>,
#> #   MCC_mean <dbl>, MCC_sd <dbl>, AUC_mean <dbl>, AUC_sd <dbl>,
#> #   BOYCE_mean <dbl>, BOYCE_sd <dbl>, CRPS_mean <dbl>, CRPS_sd <dbl>, …
gbm_t$performance_part
#> # A tibble: 3 × 21
#>   replica partition model threshold thr_value n_presences n_absences   TPR   TNR
#>   <chr>   <chr>     <chr> <chr>         <dbl>       <int>      <int> <dbl> <dbl>
#> 1 1       1         gbm   max_sens…     0.473         234        234 0.902 0.863
#> 2 1       2         gbm   max_sens…     0.564         233        233 0.880 0.837
#> 3 1       3         gbm   max_sens…     0.569         233        233 0.876 0.858
#> # ℹ 12 more variables: W_TPR_TNR <dbl>, SORENSEN <dbl>, JACCARD <dbl>,
#> #   FPB <dbl>, OR <dbl>, TSS <dbl>, KAPPA <dbl>, MCC <dbl>, AUC <dbl>,
#> #   BOYCE <dbl>, CRPS <dbl>, IMAE <dbl>
gbm_t$hyper_performance
#> # A tibble: 8 × 33
#>   n.trees shrinkage n.minobsinnode model threshold     TPR_mean TPR_sd TNR_mean
#>     <dbl>     <dbl>          <dbl> <chr> <chr>            <dbl>  <dbl>    <dbl>
#> 1      20       0.1              3 gbm   max_sens_spec    0.899 0.0213    0.744
#> 2      20       0.1              7 gbm   max_sens_spec    0.899 0.0213    0.744
#> 3      20       0.5              3 gbm   max_sens_spec    0.900 0.0366    0.807
#> 4      20       0.5              7 gbm   max_sens_spec    0.900 0.0366    0.807
#> 5      50       0.1              3 gbm   max_sens_spec    0.893 0.0336    0.783
#> 6      50       0.1              7 gbm   max_sens_spec    0.893 0.0336    0.783
#> 7      50       0.5              3 gbm   max_sens_spec    0.886 0.0140    0.853
#> 8      50       0.5              7 gbm   max_sens_spec    0.899 0.0361    0.839
#> # ℹ 25 more variables: TNR_sd <dbl>, W_TPR_TNR_mean <dbl>, W_TPR_TNR_sd <dbl>,
#> #   SORENSEN_mean <dbl>, SORENSEN_sd <dbl>, JACCARD_mean <dbl>,
#> #   JACCARD_sd <dbl>, FPB_mean <dbl>, FPB_sd <dbl>, OR_mean <dbl>, OR_sd <dbl>,
#> #   TSS_mean <dbl>, TSS_sd <dbl>, KAPPA_mean <dbl>, KAPPA_sd <dbl>,
#> #   MCC_mean <dbl>, MCC_sd <dbl>, AUC_mean <dbl>, AUC_sd <dbl>,
#> #   BOYCE_mean <dbl>, BOYCE_sd <dbl>, CRPS_mean <dbl>, CRPS_sd <dbl>,
#> #   IMAE_mean <dbl>, IMAE_sd <dbl>
gbm_t$data_ens
#> # A tibble: 1,400 × 5
#>    rnames replicates part  pr_ab    pred
#>    <chr>  <chr>      <chr> <dbl>   <dbl>
#>  1 1      .part      1         0 0.216
#>  2 4      .part      1         0 0.00795
#>  3 5      .part      1         0 0.197
#>  4 7      .part      1         0 0.0358
#>  5 8      .part      1         0 0.00448
#>  6 10     .part      1         0 0.112
#>  7 12     .part      1         0 0.288
#>  8 19     .part      1         0 0.0728
#>  9 21     .part      1         0 0.159
#> 10 23     .part      1         0 0.0717
#> # ℹ 1,390 more rows

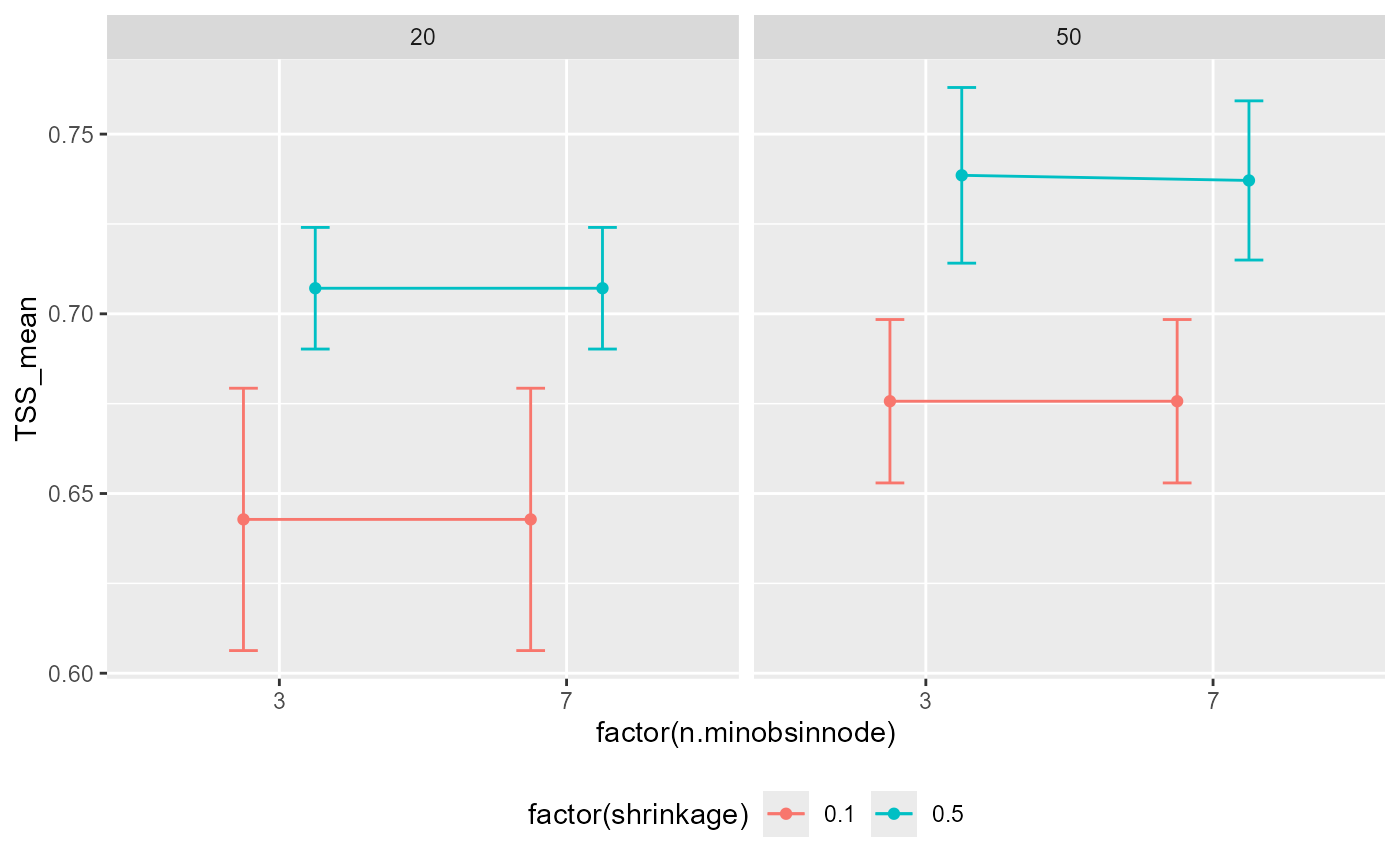

# Graphical exploration of performance of each hyper-parameter setting
require(ggplot2)
pg <- position_dodge(width = 0.5)
ggplot(gbm_t$hyper_performance, aes(factor(n.minobsinnode),
  TSS_mean,
  col = factor(shrinkage)
)) +
  geom_errorbar(aes(ymin = TSS_mean - TSS_sd, ymax = TSS_mean + TSS_sd),
    width = 0.2, position = pg
  ) +
  geom_point(position = pg) +
  geom_line(
    data = gbm_t$tune_performance,
    aes(as.numeric(factor(n.minobsinnode)),
      TSS_mean,
      col = factor(shrinkage)
    ), position = pg
  ) +
  facet_wrap(. ~ n.trees) +
  theme(legend.position = "bottom")

# }
